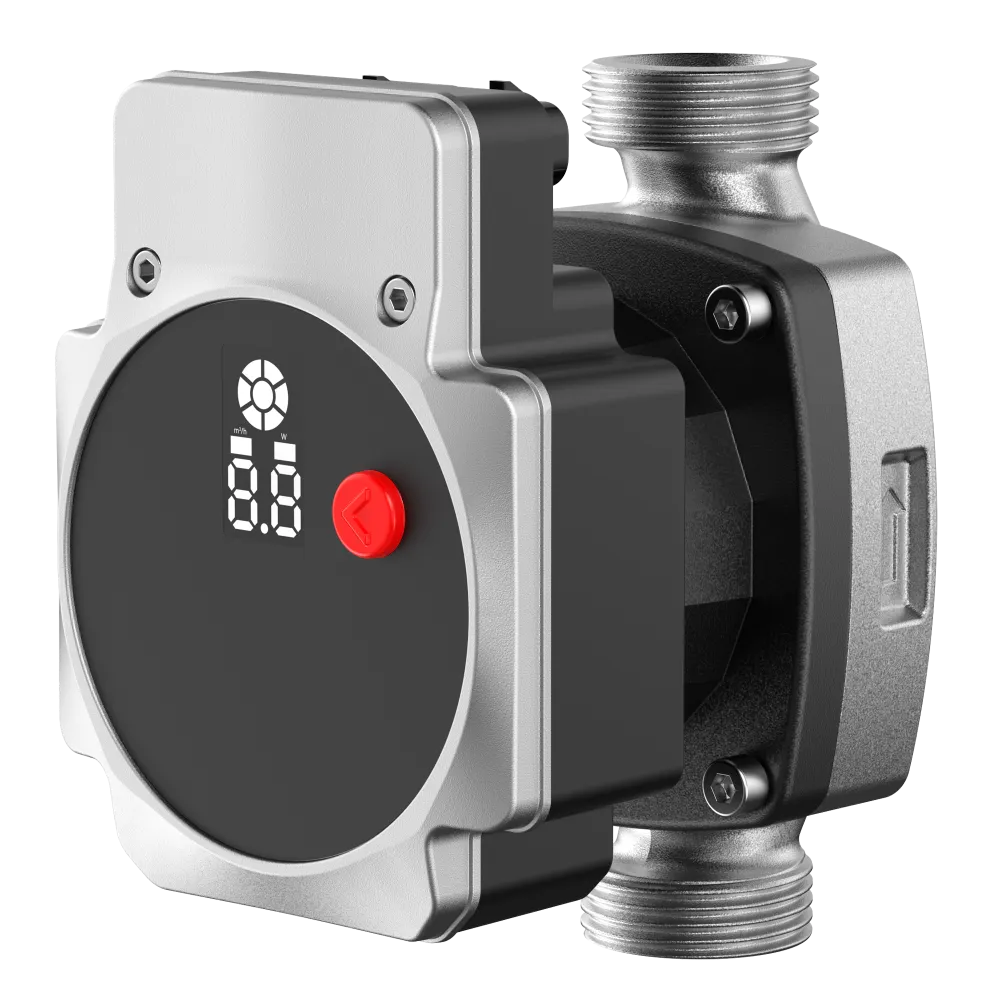

2WHM32-90 180

Enerji Tasarruflu Sirkülasyon Pompaları

2WHM32-90 180

ÖZELLİKLER Kapalı devre sistemler için uygun dökme demir gövde, içme suyu ve açık devre sistemler için uygun paslanmaz çelik gövde; yoğuşmalı ortamlarda çalışmaya uygun, chiller suyu sirkülasyonu için tasarlanmış kapsüllü BMC motor. PWM versiyonu – sistem kontrolöründen gelen PWM kontrol sinyali ile harici olarak kontrol edilir. PWM A profiline sahiptir ve hem güç geri bildirimi hem de debi geri bildirimi sunar. AUTO versiyonu – entegre pompa kontrolörü tarafından dahili olarak kontrol edilir.
Product name: 2WHM32-90 180

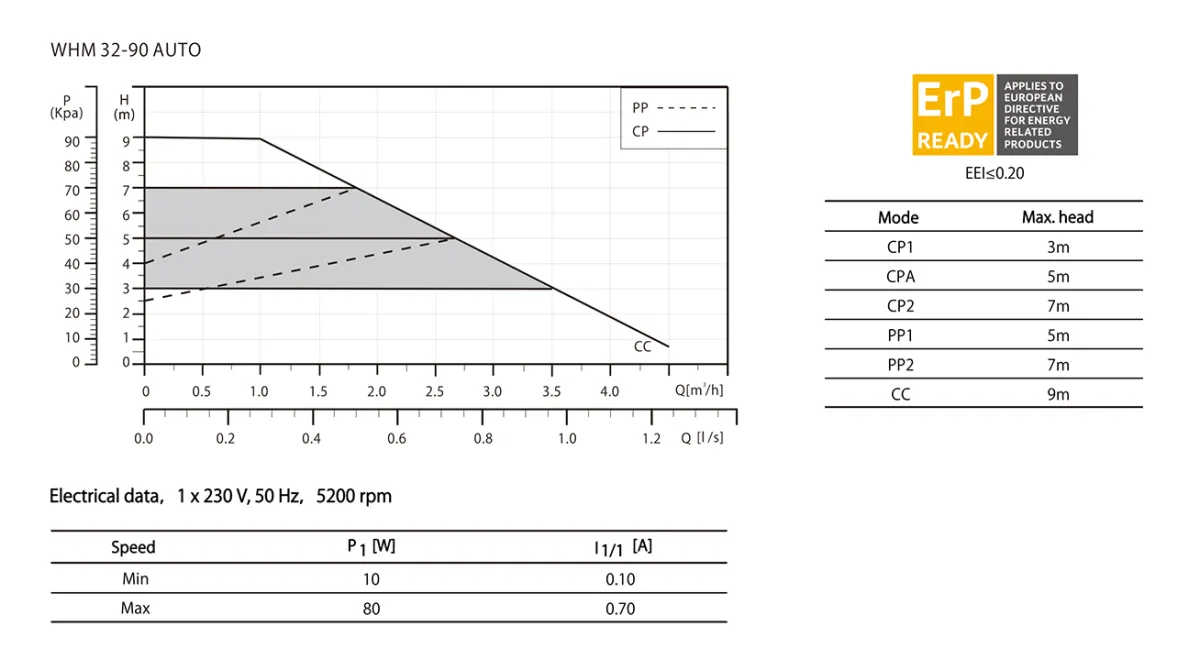

Technical

Maximum flow 4.5m3/h
Maximum head 9m
TF class 110
Approvals VDE,CE

Materials

Pump housing Cast iron/Stainless steel
Impeller PES + GF30%

Installation

Maximum ambient temperature 40°C
Maximum operating pressure 10 bar
Type of connection G
Size of connection 2 inch
Pressure rating for connection PN10
Port to port length 180

Liquid

Pumped liquid Water
Liquid temperature range 2 ~ 110°C
Selected liquid temperature 60°C
Density 983.2 kg/m3

Electrical data

Minimum power input – P1 10 W
Power input – P1 80 W
Mains frequency 50 / 60 Hz
Rated voltage 1 x 230V
Maximum current consumption 0.7 A
Enclosure class 44
Insulation class F
Built-in motor protection NONE
Thermal protection ELEC

Controls

Internal control AUTO
External control PWM

Others

Energy (EEI) 0.2
Terminal box position 12H
Net weight /
Gross weight /
Shipping volume /
